The Larami Corporation of Philadelphia, PA
patented an ingenious new type of watergun. It uses a high-pressure reservoir
partially filled with air under pressure. This HYDRAULIC ACCUMULATOR had never
been used in toy waterguns before. A hand-operated piston forces first air,
then water into the high-pressure reservoir (the circular ball.) Pulling the trigger
releases a stream that can go 50 feet!
The trigger is a spring-loaded pincher
which holds the vinyl tube shut. If you pump too much, pressure opens the trigger-valve
and water dribbles out the nozzle, long before the high-presssure areas would
burst.
Download an animation of this pump!

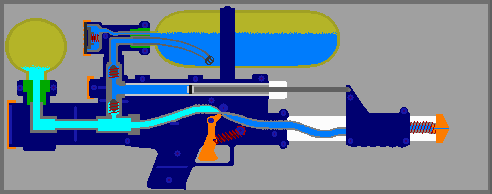

(This is a still representation and possibly also a low-resolution
image of a pump which is fully animated in the CD-ROM version of this glossary.)
